Bezel Wire Data

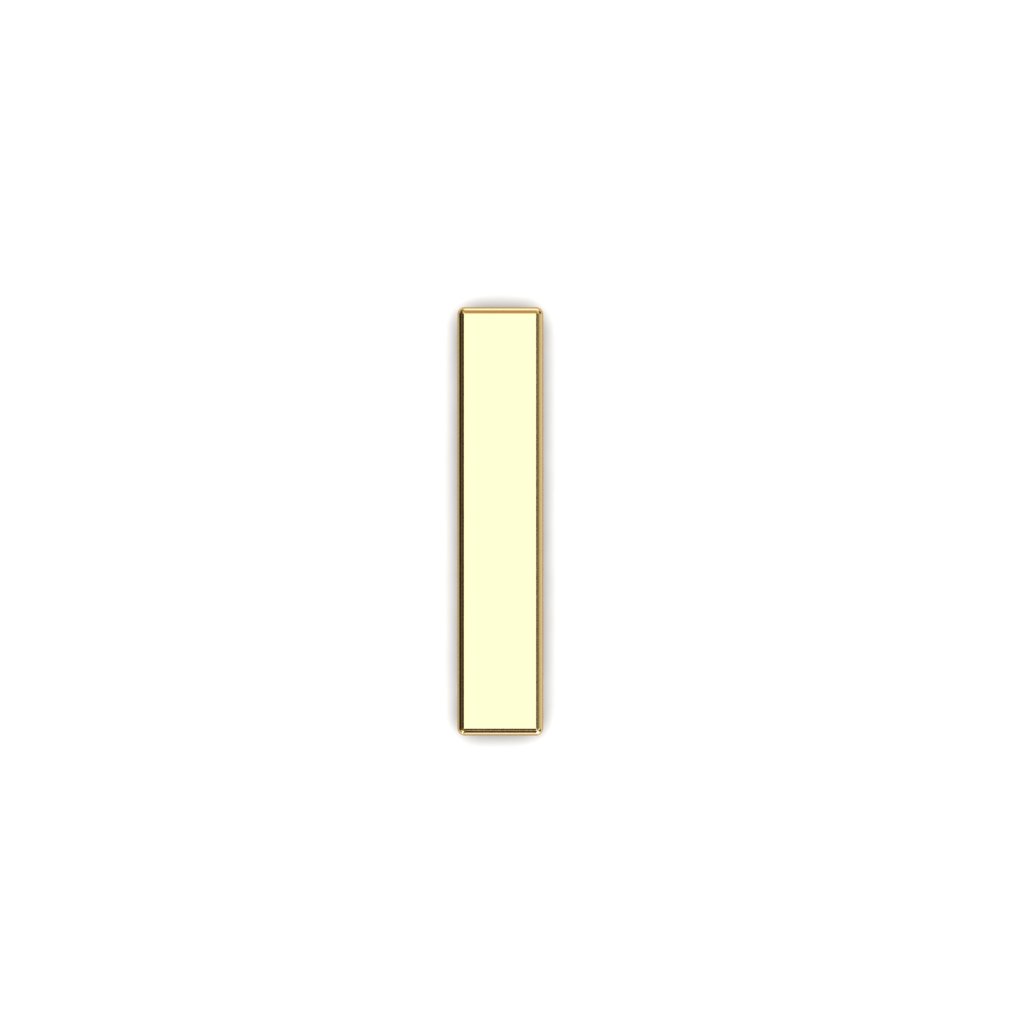

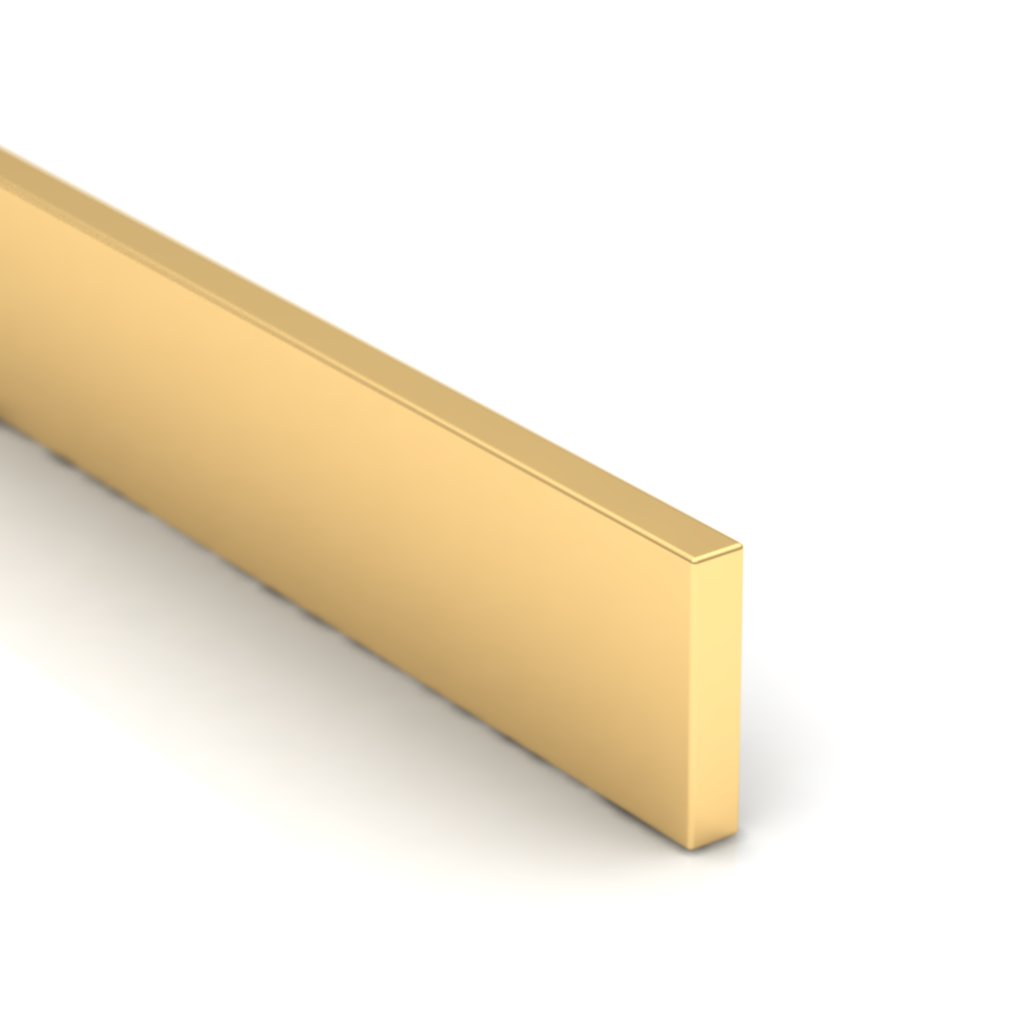

angle view of Bezel Wire Renderedfront view of Bezel Wire Rendered

Bezel wire is a thin, malleable strip of metal used to create bezels - the frames that encase and secure gemstones in jewelry.

It is typically made from precious metals like gold, silver and copper to complement the aesthetic of the jewelry piece.

Bezel wire allows for precise and secure setting of stones. Its flexibility enables jewelers to wrap it tightly around gemstones of various shapes and sizes, ensuring a snug fit that keeps the stone securely in place.

In addition to our Copper Bezel wire available from the Tool Shop we have the following standard sizes of precious metal bezel wires, with the approximate weight per metre.

  Weight per metre (g)
Wire Size
Width x Height
(mm)		 Sterling 9ct Yellow 18ct Yellow
0.3 x 2.0 mm 6.3g 6.8 9.3g
0.3 x 2.5 mm 8.0g 8.4g 11.7g
0.3 x 2.8 mm 8.9g 9.4g 13.1g
0.3 x 3.0 mm 9.4g 10.1g 14.0g
0.3 x 3.5 mm 10.9g 11.8g 16.3g
0.3 x 5.0 mm 15.6g 16.8g 23.3g
0.3 x 15.0 mm 46.8g 50.4g 69.8g
0.4 x 2.0 mm 8.4g 9.0g 12.4g
0.4 x 5.0 mm 20.8g 22.4g 31.0g
0.4 x 10.0 mm 41.6g 44.8g 62.0g
0.5 x 2.0 mm 10.4g 11.2g 15.5g
0.5 x 5.0 mm 26.0g 28.0g 38.8g
0.5 x 10.0 mm 52.0g 56.0g 77.5g
0.5 x 15.0 mm 78g 84g 116.3g
0.5 x 20.0 mm 104g 112g 155g
0.6 x 2.0 mm 12.5g 13.5g 18.6g
0.6 x 5.0 mm 31.2g 33.6g 46.5g
0.7 x 2.0 mm 14.6g 15.7g 21.7g
0.7 x 5.0 mm 36.4g 39.2g 54.3g
0.8 x 2.0 mm 16.7g 18.0g 24.8g
0.8 x 5.0 mm 41.6g 44.8g 62.0g
0.9 x 2.0 mm 18.8g 20.2g 27.9g
0.9 x 5.0 mm 46.8g 50.4g 69.8g
0.9 x 10.0 mm 93.6g 100.8g 139.5g

Anything over 1.0mm thick is ‘rectangle wire’ which can be
made to your specifications.

Please allow a few days for the metal to be fabricated



To Order

Please open the Fabricated Metal Catalogue to see ordering options
