Half Round Wire

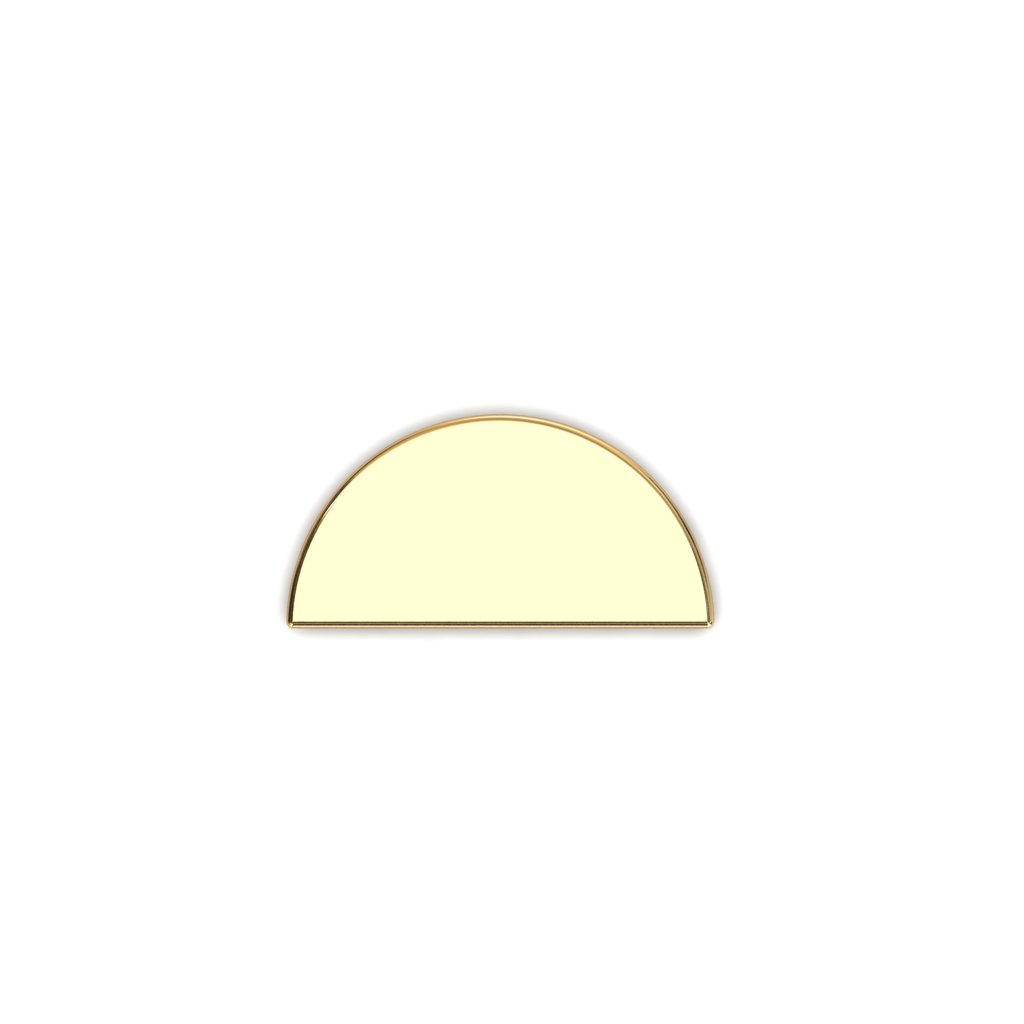

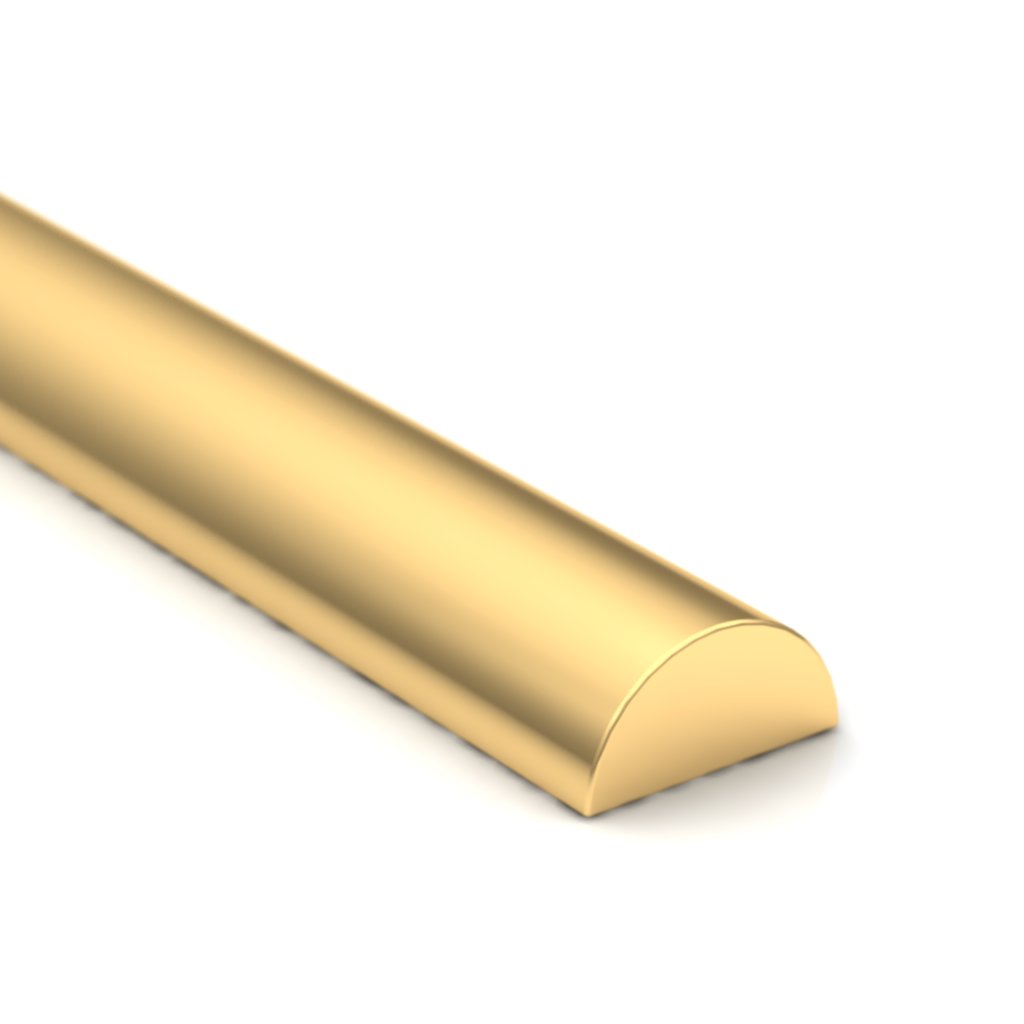

Half-round wire, as the name suggests, is wire that is round on one side and flat on the other. This unique shape offers a variety of benefits for jewelry design and fabrication.
Half-round wire is used many jewelry-making applications, including:
- Ring bands: Providing a comfortable fit and durable structure.
- Bracelet bases: Offering a sturdy foundation for charms and decorations.
- Bezel settings: Creating secure and aesthetically pleasing settings for stones.
- Decorative elements: Adding texture and visual interest to pieces.
- Chain making: Forming links that are both strong and elegant.
Regal has a wide selection of half round profiles available for your fabrication needs,
Weights in the table are average weight in grams per metre of metal.
| >Wire Size | >Weight per metre (g) | ||
|---|---|---|---|
| Width x Height | Sterling | 9ct Yellow | 18ct Yellow |
| 1.00 x 0.50 | 5.0 | 5.4 | 7.5 |
| 1.30 x 0.65 | 7.3 | 7.9 | 10.9 |
| 1.40 x 0.70 | 8.0 | 8.6 | 11.9 |
| 1.50 x 0.50 | 9.0 | 9.7 | 13.4 |
| 1.50 x 0.75 | 9.0 | 9.7 | 13.4 |
| 1.60 x 0.90 | 13.0 | 14.0 | 19.4 |
| 1.70 x 0.85 | 13.0 | 14.0 | 19.4 |
| 1.80 x 0.90 | 15.0 | 16.2 | 22.4 |
| 2.00 x0.80 | 14.0 | 15.1 | 20.9 |
| 2.00 x 1.00 | 16.0 | 17.2 | 23.8 |
| 2.30 x 0.80 | 15.5 | 16.7 | 23.1 |
| 2.50 x 1.00 | 22.0 | 23.7 | 32.8 |
| 2.50 x 1.25 | 25.0 | 26.9 | 37.3 |
| 2.80 x 1.00 | 23.0 | 24.8 | 34.3 |
| 3.00 x 1.10 | 31.0 | 33.4 | 46.2 |
| 3.00 x 1.20 | 32.0 | 34.5 | 47.7 |
| 3.00 x 1.40 | 35.0 | 37.7 | 52.2 |
| 3.00 x 1.50 | 40.0 | 43.1 | 59.6 |
| 3.00 x 1.80 | 48.0 | 51.7 | 71.5 |
| 3.50 x 1.20 | 35.0 | 37.7 | 52.2 |
| 3.50 x 1.40 | 42.0 | 45.2 | 62.6 |
| 3.50 x 1.80 | 45.0 | 48.5 | 67.1 |
| 4.00 x 1.20 | 40.0 | 43.1 | 59.6 |
| 4.00 x 1.40 | 47.0 | 50.6 | 70.0 |
| 4.00 x 1.50 | 54.0 | 58.2 | 80.5 |
| 4.00 x 1.80 | 62.0 | 66.8 | 92.4 |
| 4.00 x 2.00 | 69.0 | 74.3 | 102.8 |
| 4.50 x 1.20 | 42.0 | 45.2 | 62.6 |
| 4.50 x 1.50 | 56.0 | 60.3 | 83.5 |
| 4.50 x 1.80 | 69.0 | 74.3 | 102.8 |
| 4.50 x 2.00 | 80.0 | 86.2 | 119.2 |
| 5.00 x 1.20 | 46.0 | 49.5 | 86.6 |
| 5.00 x 1.40 | 56.0 | 60.3 | 83.5 |
| 5.00 x 1.60 | 61.0 | 65.7 | 90.9 |
| 5.00 x 1.80 | 72.0 | 77.5 | 107.3 |
| 5.00 x 2.00 | 83.0 | 89.4 | 123.7 |
| 5.50 x 1.20 | 64.0 | 68.9 | 95.4 |
| 5.50 x 1.40 | 75.0 | 80.8 | 111.8 |
| 5.50 x 1.80 | 81.0 | 87.2 | 120.7 |
| 5.50 x 2.00 | 95.0 | 102.3 | 141.6 |
| 6.00 x 1.40 | 70.0 | 75.4 | 104.3 |
| 6.00 x 1.50 | 75.0 | 80.8 | 111.8 |
| 6.00 x 1.80 | 85.0 | 91.5 | 126.7 |
| 6.00 x 2.00 | 97.0 | 104.5 | 144.6 |
| 6.00 x 2.40 | 113.0 | 121.7 | 168.4 |
| 6.50 x 1.50 | 85.0 | 91.5 | 126.7 |
| 6.50 x 1.80 | 88.0 | 94.8 | 131.2 |
| 6.50 x 2.00 | 106.0 | 114.2 | 158.0 |
| 7.00 x 1.50 | 87.0 | 93.7 | 129.7 |
| 7.00 x 1.80 | 98.0 | 105.5 | 146.1 |
| 7.00 x 2.00 | 105.0 | 113.1 | 156.5 |
| 7.50 x 1.80 | 104.0 | 112.0 | 155.0 |
| 7.50 x 2.00 | 124.0 | 133.5 | 184.8 |
| 7.50 x 3.00 | 173.0 | 186.3 | 257.8 |
| 8.00 x 1.80 | 116.0 | 124.9 | 172.9 |
| 8.00 x 2.00 | 130.0 | 140.0 | 193.8 |
| 8.50 x 1.80 | 125.0 | 134.6 | 186.3 |
| 9.00 x 1.80 | 125.0 | 134.6 | 186.3 |
| 9.00 x 2.00 | 144.0 | 155.1 | 214.6 |
| 9.50 x 1.80 | 131.0 | 141.1 | 195.2 |
| 9.50 x 2.00 | 145.0 | 156.2 | 216.1 |
| 10.0 x 2.00 | 148.0 | 159.4 | 220.6 |
| 10.0 x 2.25 | 180.0 | 193.8 | 268.3 |
| 10.5 x 2.50 | 224.0 | 241.2 | 333.8 |
| 12.0 x 2.50 | 236.0 | 254.2 | 351.7 |
| 15.0 x 2.50 | 327.0 | 352.2 | 487.4 |
| 20.0 x 2.50 | 415.6 | 447.6 | 619.4 |
How to estimate - Wire Calculation
The data pages for the wire list the weight per metre for the popular sizes of wire.
If you multiply the length you want (in metres) by this number, you will get the approximate weight for the metal you are ordering
Example:
2.00 x 0.80mm Sterling Round wire lists 14.0 g per metre in the table above.
If you want 400mm, that is 0.4m
so 0.4 x 14.0 = 5.6g (approximately)
To Order
Please open the Fabricated Metal Catalogue to see ordering options
