Oval & Sharp Oval Wire Data

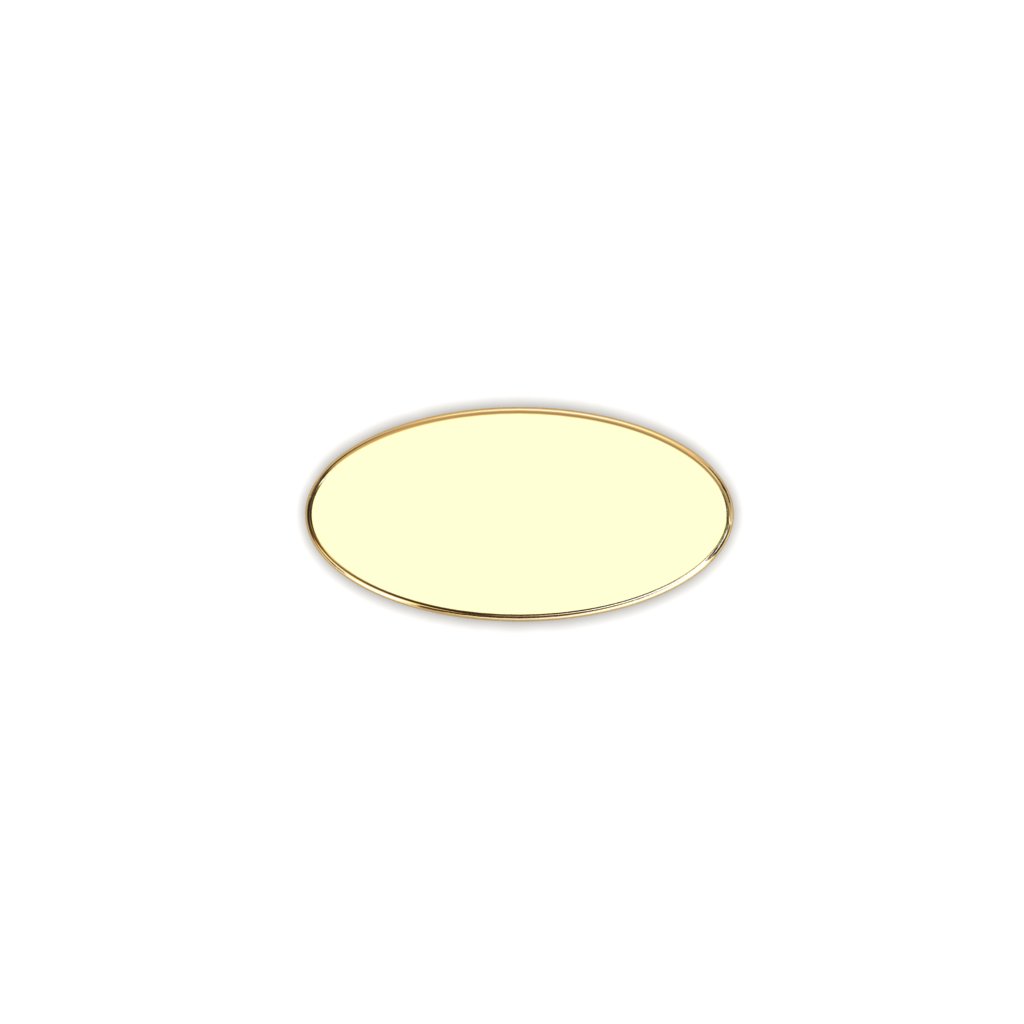

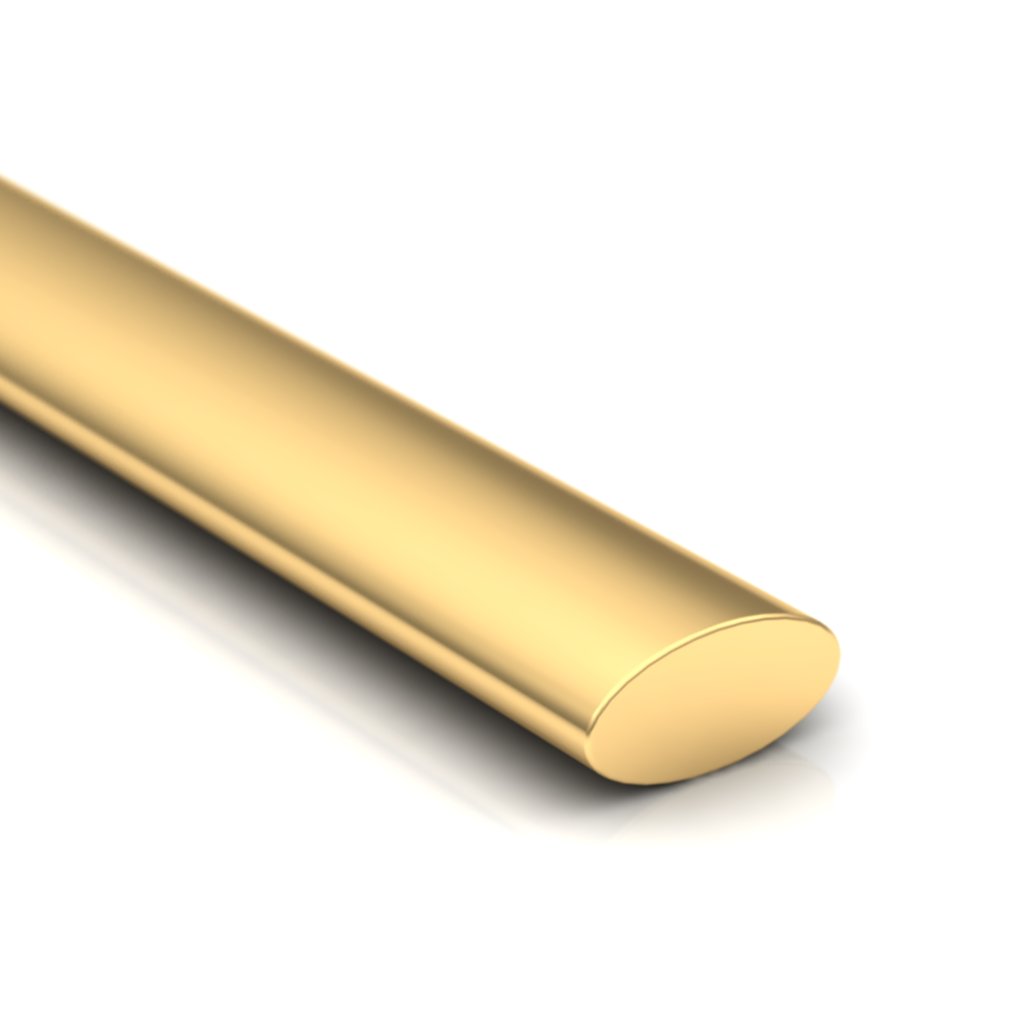

Oval Wire
These profiles are available in over 14 alloys.
Coiling service available FREE on all bangles - please note this on the individual items you want coiled.
| Weight per metre (g) | |||
|---|---|---|---|
| Wire Size (mm) |
Sterling | 9ct Yellow | 18ct Yellow |
| 3.00 x 1.65 | 41.0 | 44.2 | 61.1 |
| 3.50 x 2.00 | 58.0 | 62.5 | 86.4 |
| 4.00 x 2.25 | 73.0 | 78.6 | 108.8 |
| 4.50 x 2.45 | 91.0 | 98.0 | 135.6 |
| 5.00 x 2.70 | 109.0 | 117.4 | 162.5 |
| 5.50 x 3.05 | 140.0 | 150.8 | 208.7 |
| 6.00 x 3.25 | 160.0 | 172.3 | 238.5 |
| 6.50 x 3.55 | 197.0 | 212.2 | 293.6 |
| 7.00 x 3.80 | 220.0 | 236.9 | 327.9 |
| 7.50 x 4.10 | 255.0 | 274.6 | 380.0 |
| 8.00 x 4.30 | 293.0 | 315.5 | 436.7 |

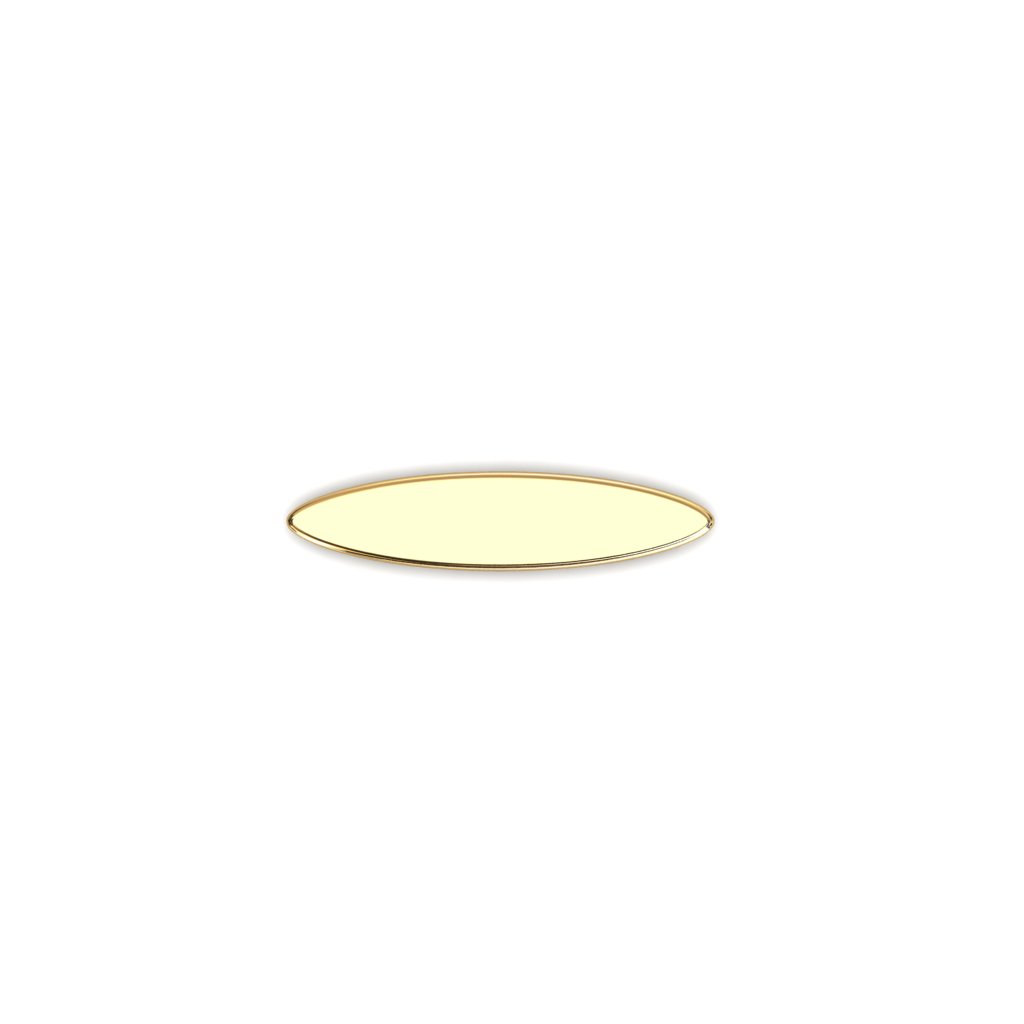

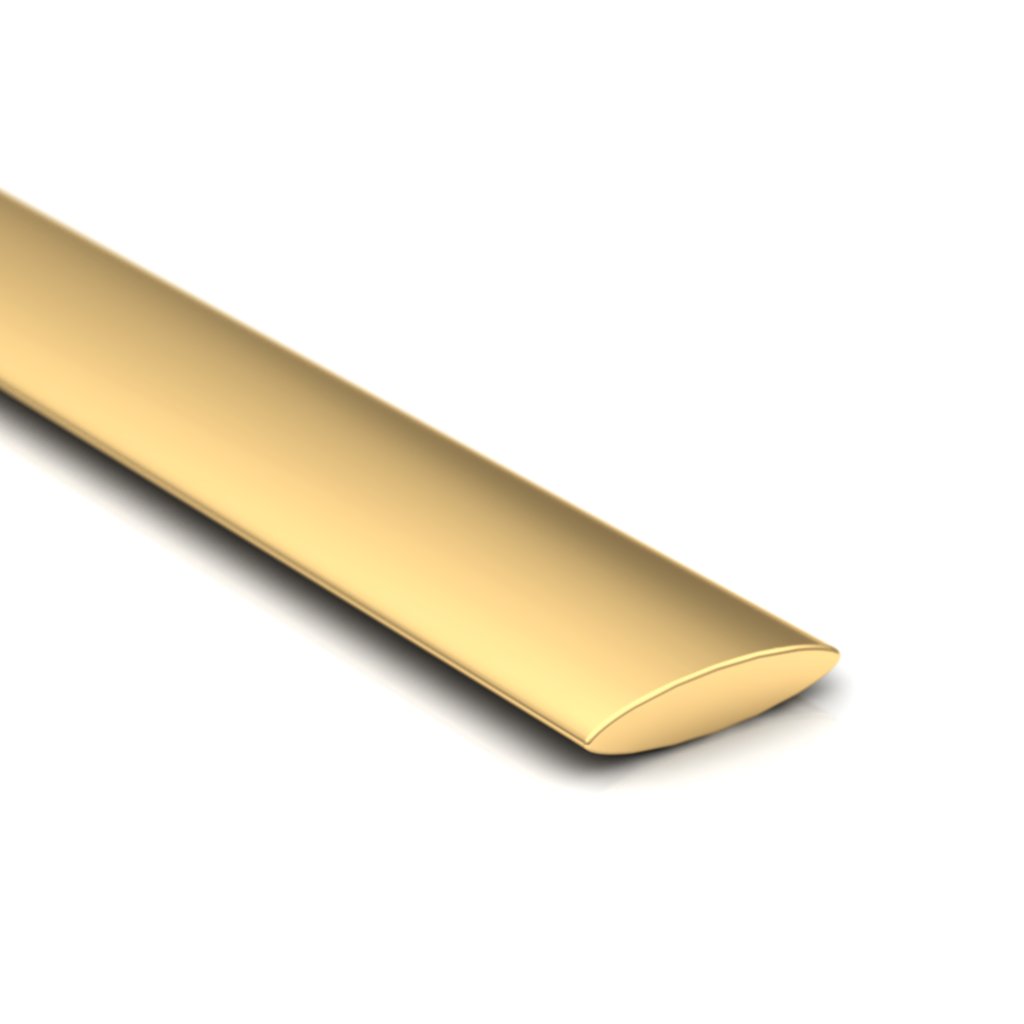

Sharp Oval Wire
All profiles available in all alloys.
Free coiling service available.
Other profiles available on request.
| Weight per metre (g) | |||
|---|---|---|---|
| Wire Size (mm) |
Sterling | 9ct Yellow | 18ct Yellow |
| 3.00 x 1.20 | 32.0 | 34.0 | 47.1 |
| 3.50 x 1.50 | 40.0 | 43.5 | 60.2 |
| 4.00 x 1.65 | 55.0 | 59.2 | 82.0 |
| 4.50 x 1.85 | 64.0 | 68.9 | 95.4 |
| 5.00 x 2.10 | 77.0 | 82.9 | 114.8 |
| 5.50 x 2.00 | 84.0 | 90.5 | 125.2 |
| 6.00 x 2.15 | 94.0 | 101.2 | 140.1 |
| 6.50 x 2.30 | 113.0 | 121.7 | 168.4 |
| 7.00 x 2.50 | 134.0 | 144.3 | 199.7 |
| 7.50 x 2.70 | 151.0 | 162.6 | 225.0 |
| 8.00 x 2.90 | 180.0 | 193.8 | 268.3 |
| 8.50 x 3.00 | 200.0 | 215.4 | 298.1 |
| 9.00 x 3.35 | 218.0 | 234.8 | 324.9 |
To Order
Please open the Fabricated Metal Catalogue to see ordering options
